Systems

Networked Satellite System
D-TACQ digitizers can plug in directly to the plant Ethernet.

• Lowest cost deployment, self supporting unit needs only a chassis and network cable.
• Cost effective for "small" systems with a single card.
  With ACQ196CPCI, a "small" system has 32 .. 96 channels.

• Uses standard TCP/IP networking.
• Control from remote computer, simple, open standards, "no device driver required"
• Data upload to remote computer, multiple methods available.
  The remote computer is typically a server-class PC with a high performance disk sub-system.

• Highly scaleable - simply add more cards and more network cards, at upload time, all the cards can work in parallel.

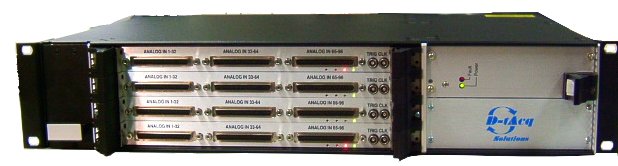

Example: 4 x ACQ196CPCI 384 channels in 2U
