D-TACQ digitizers share the same common set of values:

• Simultaneous capture using a dedicated convertor per channel.
• Maximum possible channel density for lowest cost per channel.
• Uncompromising analog performance, with best possible analog front end.
• Intelligent architecture with tightly integrated digital subsystem: fpga, microprocessor, ethernet and deep memory.
• Applications include transient recording, continuous capture, signal processing and control.

Digitizers

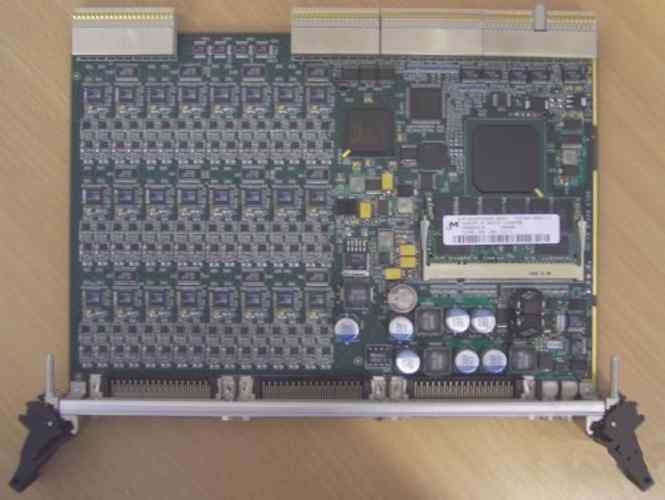

96 channels 500 kSPS/channel simultaneous-sampling digitizer	ACQ196CPCI-96-500
96 channels 250 kSPS/channel simultaneous-sampling digitizer	ACQ196CPCI-96-250
64 channels 500 kSPS/channel simultaneous-sampling digitizer	ACQ196CPCI-64-500
32 channels 500 kSPS/channel simultaneous-sampling digitizer	ACQ196CPCI-32-500
32 channels 2..32 MSPS/channel simultaneous-sampling digitizer	ACQ132CPCI-32-02C
32 channels 65 MSPS/channel simultaneous-sampling gated burst digitizer	ACQ132CPCI-32-65G
16 channels 16..50 MSPS/channel simultaneous-sampling digitizer	ACQ216CPCI-16-50

24 Bit Digitizer

64 channels 128 kSPS/channel 24 bit simultaneous-sampling digitizer

ACQ164CPCI

Analog Output Cards

32 channel simultaneous Analog Output AWG	AO32CPCI
32 channel simultaneous Analog Output 18 bit AWG	AO32CPCI-ER

Older products

(no longer in producttion)

32 channel simultaneous update AWG	WAV232CPCI
32 channels 250kSPS/channel, simultaneous sampling analog input, the Original! ** Use ACQ196CPCI **	ACQ32PCI
16 channels, 1.8..3 MSPS/channel simultaneous sampling analog input ** Use ACQ132CPCI **	ACQ16PCI
32 channels, 250kSPS/channel, simultaneous sampling analog input ** Use ACQ196CPCI **	ACQ32CPCI
